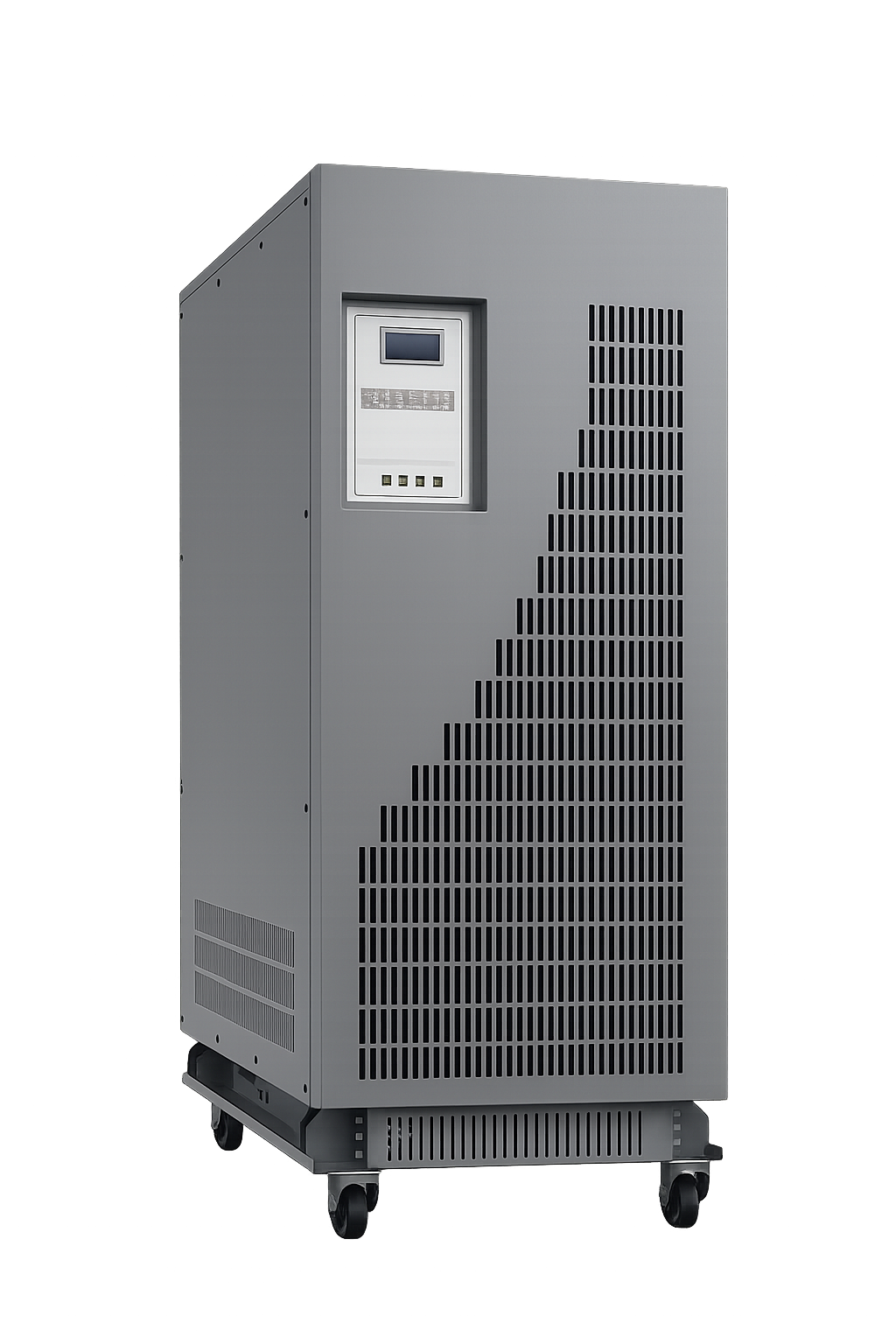

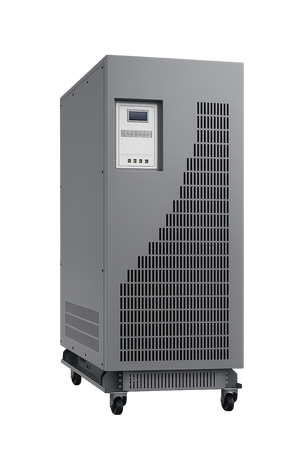

(UPS) 3 In 3 10kVA - 60kVA
$0.00 USD
$0.00 USD

DESCRIPTION:

S2A presents the PowerXcel ENERGI Series, a state-of-the art power backup solution designed with a built-in isolation transformer, SCR-based rectifier, and IGBT-based inverter.

Engineered for critical applications, this UPS ensures maximum reliability, superior power conditioning, and complete electrical isolation to safeguard sensitive equipment.

Features:

  • True Online Double Conversion Technology
  • Wide Input Voltage Range
  • Compatible with Engine Generator
  • LCD/LED Display
  • IGBT Inverter with Multiloop Control
  • Output Isolation Between UPS and Critical Load
  • Wheel Desing for easy movement and relocation
  • Compact and Versatile Desing

Specification:

CAPACITY kVA 10 15 20 30 40 50 60
kW 8 12 16 24 32 40 48
TYPE Low Frequency Isolation Transformer Based
INPUT Phase Three Phase (3P+N)
Input Voltage Range 415V AC ± 25%
Input Frequency 50HZ ± 5%
Input Ripple < 5%
Soft Start 0~100% 5 second
OUTPUT Nominal Voltage 380/400/415V AC, (3P+N)
Regulation ±1% for Linear & Non-Linear Load
Output Frequency 50HZ ± 0.5%
Crest Factor > 3:1
Power Factor 0.8
Output THD Linear Load < 3%, Non-Linear Load < 5%
Efficiency Up to 85% (Full Load)
BATTERY DC Voltage 360-384 VDC (selectable)
Number of Battery 30-32 (Selectable)
Charging Current 1-20 Amp (Settable)
BYPASS Phase Single Phase (3P+N)
Manual Maintenance Bypass Switch Provided
Static No Break (Optional)
PROTECTION Input Protection Input Voltage, Frequency Under/Over limit Protection
Output Protection Over Current, Short-Circuit, Over/Under Voltage
Battery Protection Over Charge, Over Discharge protection
Temperature Protection Inverter Over Temperature Protection
GENERAL PARAMETERS Working Environment Temp: 10-550 C, Relative Humidity : 30-90%
Display LCD + Physical Button
Alarm Low Battery, Abnormal AC Input, UPS Failure, etc.
Noise (dB) < 55
Dimensions (L*W*H) 690 X 386 X 719 689 X 387 X 856 779 X 412 X 1001
Weight (kg) 122 152 160 214 272 330 351
