DESCRIPTION:

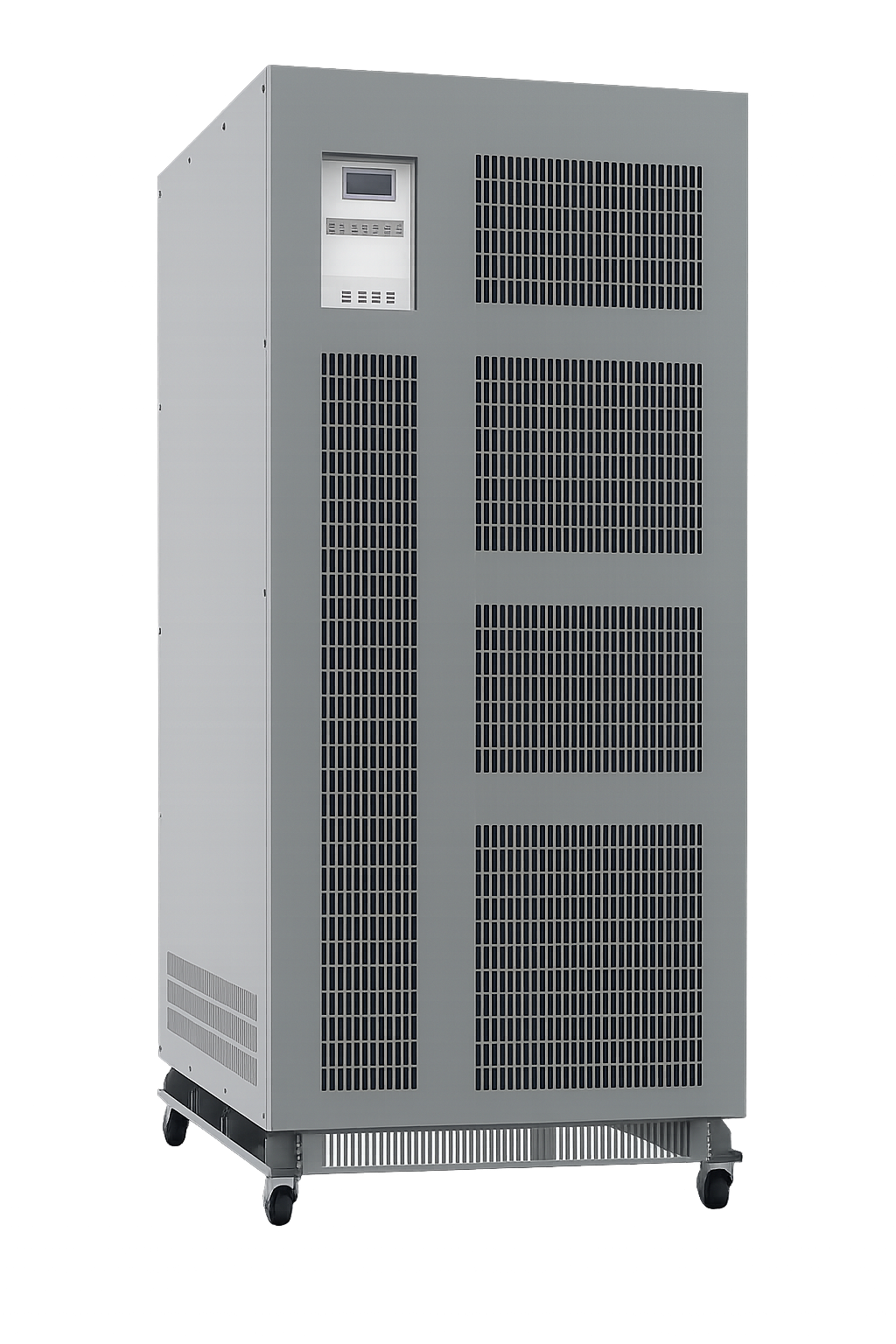

S2A proudly presents the PowerXcel XPERT Series, a high-performance, large-capacity Online UPS featuring an IGBT-based rectifier, IGBT-based inverter, and a built-in isolation transformer.
Engineered for heavy industrial, commercial, and mission-critical applications, this UPS ensures maximum power reliability, superior efficiency, and complete electrical isolation, making it the perfect choice for high-demand environments.
Features:
Specification:
| CAPACITY | kVA | 80 | 100 | 120 | 160 | 200 | 300 | ||
| kW | 64 | 80 | 96 | 128 | 160 | 240 | |||
| TYPE | Low Frequency Isolation Transformer Based | ||||||||
| INPUT | Phase | Three Phase (3P+N) | |||||||
| Input Voltage Range | 415V AC ± 25% | ||||||||
| Input Frequency | 50HZ ± 5% | ||||||||
| Input Ripple | < 5% | ||||||||
| Power Factor | >0.95% | ||||||||
| Soft Start | 0~100% 5 second | ||||||||
| OUTPUT | Nominal Voltage | 380/400/415V AC, (3P+N) | |||||||
| Regulation | ±1% for Linear & Non-Linear Load | ||||||||
| Output Frequency | 50HZ ± 0.5% | ||||||||
| Crest Factor | > 3:1 | ||||||||
| Power Factor | 0.8 | ||||||||
| Output THD | Linear Load < 3%, Non-Linear Load < 5% | ||||||||
| Efficiency | UP to >95% (Full Load) | ||||||||
| BATTERY | DC Voltage | 360-384 VDC (Selectable) | |||||||
| Number of Battery | 30-32 (Selectable) | ||||||||
| Charging Current | 1-20 Amp (settable) - Expandable to 40Amp | ||||||||
| BYPASS | Phase | Single Phase (3P+N) | |||||||
| Manual | Maintenance Bypass Switch Provided | ||||||||
| Static | No Break (Optional) | ||||||||
| PROTECTION | Input Protection | Input Voltage, Frequency Under/Over limit Protection | |||||||
| Output Protection | Over Current, Short-Circuit, Over/Under Voltage | ||||||||
| Battery Protection | Over Charge, Over Discharge protection | ||||||||
| Temperature Protection | Inverter Over Temperature Protection | ||||||||
| GENERAL PARAMETERS | Working Environment | Temp: 10-550 C, Relative Humidity : 30-90% | |||||||
| Display | LCD + Physical Button | ||||||||
| Alarm | Low Battery, Abnormal AC Input, UPS Failure, etc. | ||||||||
| Noise (dB) | < 55 | ||||||||
| Dimensions (L*W*H) | 954 X 712 X 1511 | 1016 X 1144 X 1656 | |||||||
| Weight (kg) | 502 | 600 | 777 | 850 | 1100 | 1250 | |||
