DESCRIPTION:

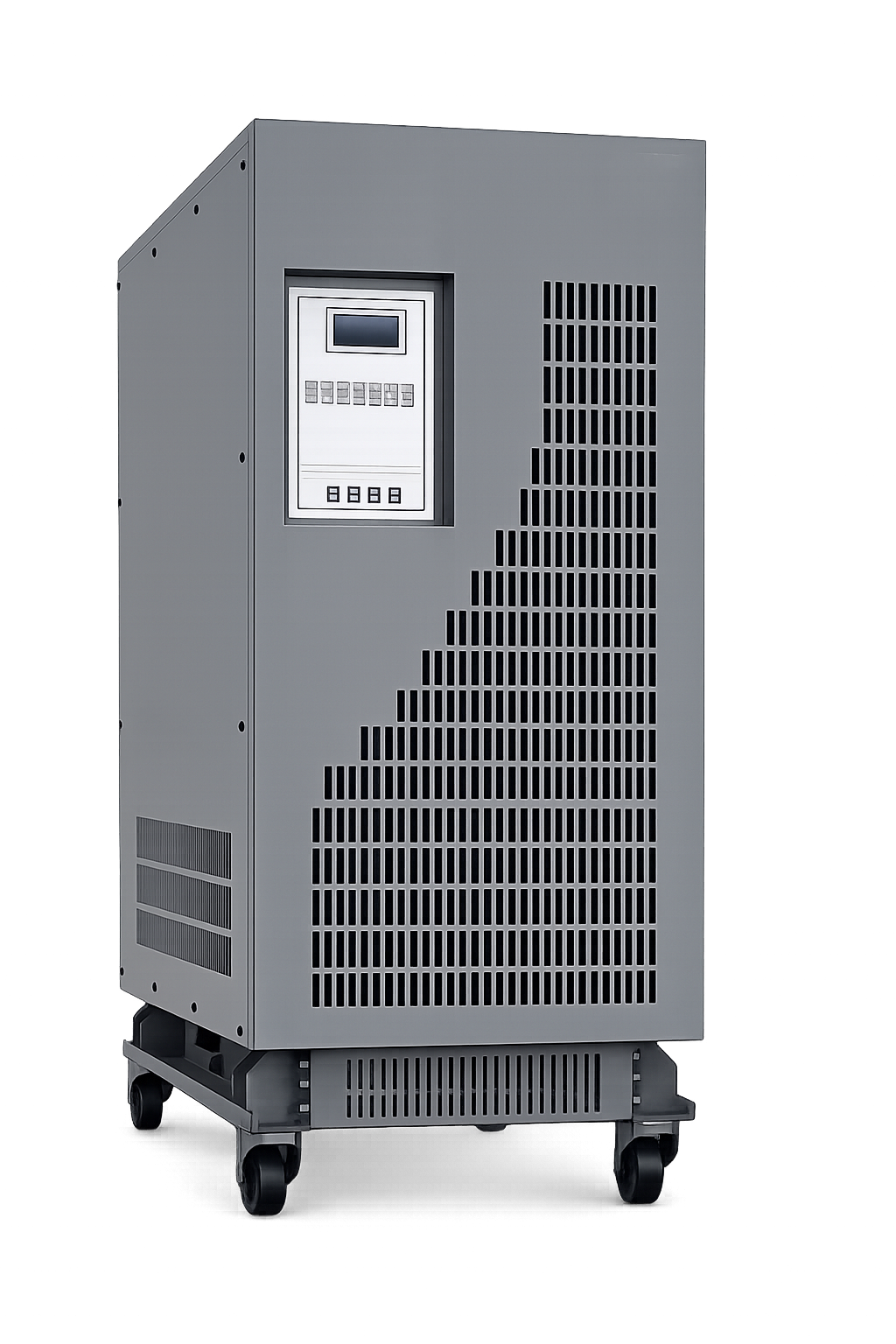

S2A introduces the PowerXcel NOVA Series, a robust and reliable 3-Phase Input, I-Phase Output Online UPS with a built-in isolation transformer, SCR-based rectifier, and IGBT-based inverter.
Designed for critical applications, this UPS offers stable, noise-free, and high-quality power, ensuring complete protection for sensitive equipment and industrial loads.
Features:
Specification:
| CAPACITY | kVA | 10 | 15 | 20 | 30 | ||
| kW | 8 | 12 | 16 | 24 | |||
| TYPE | Low Frequency Isolation Transformer Based | ||||||
| INPUT | Phase | Three Phase (3P+N) | |||||
| Input Voltage Range | 415V AC ± 25% | ||||||
| Input Frequency | 50HZ ± 5% | ||||||
| Input Ripple | < 5% | ||||||
| Soft Start | 0~100% 5 second | ||||||
| OUTPUT | Nominal Voltage | 220/230/240V AC, (IP+N) | |||||
| Regulation | ±1% for Linear & Non-Linear Load | ||||||
| Output Frequency | 50HZ ± 0.5% | ||||||
| Crest Factor | > 3:1 | ||||||
| Power Factor | 0.8 | ||||||
| Output THD | Linear Load < 3%, Non-Linear Load < 5% | ||||||
| Efficiency | At 115% Load Normal Work, 125% Load 10 Minute, 150% Load 1 Minute, 200% Load 1 Second | ||||||
| Inverter Efficiency | Up to 85% (Full Load) | ||||||
| BATTERY | DC Voltage | 360 | |||||
| Number of Battery | 30 | ||||||
| Charging Current | 1-10 Amp (Settable) | ||||||
| BYPASS | Phase | Single Phase (IP+N) | |||||
| Manual | Maintenance Bypass Switch Provided | ||||||
| Static | No Break (Optional) | ||||||
| PROTECTION | Input Protection | Input Voltage, Frequency Under/Over limit Protection | |||||
| Output Protection | Over Current, Short-Circuit, Over/Under Voltage | ||||||
| Battery Protection | Over Charge, Over Discharge protection | ||||||
| Temperature Protection | Inverter Over Temperature Protection | ||||||
| GENERAL PARAMETERS | Working Environment | Temp: 10-550 C, Relative Humidity : 30-90% | |||||
| Display | LCD + Physical Button | ||||||
| Alarm | Low Battery, Abnormal AC Input, UPS Failure, etc. | ||||||
| Noise (dB) | < 55 | ||||||
| Dimensions (L*W*H) | 690 X 386 X 719 | 689 X 387 X 856 | 779 X 412 X 1001 | ||||
| Weight (kg) | 100 | 116 | 142 | 214 | |||
